Nilight LED Light Bar Review

There is a stretch of fire road out past the Trona turnoff where the only light after sundown is what your headlights throw. My 2019 Grizzly 700 has decent factory lights for a quad, but they wash out the moment you leave pavement. Gravel edges disappear, wash crossings come up faster than you can read them, and the washboard gets harder to feel the faster you go. After one too many close calls on a late ride home, I ordered the Nilight 60W flood spot combo pods and wired them to the front rack. That was six months and roughly forty night rides ago. This is the long-term review I wish I had found before I bought them.

Not the unboxing video, not the 'installed in ten minutes' clip. I want to tell you what these lights look like at month five, after dust, vibration, a couple of water crossings, and a few thousand miles of high desert. I have taken them off once, to check the seal, and put them back in the same holes. That is the kind of detail that matters when you keep your own machine. If you are thinking about adding light to a quad or ATV that you run yourself, this is the honest version.

How I've Used It

These are not the big single bar you see on lifted trucks. They are a matched pair of 4-inch pods, each one carrying both a flood ring and a spot center, mounted side by side on a bracket I bolted to the front rack of my Grizzly. The kit comes with two lights, a 12-foot wiring harness, a switch, and a relay. That harness is the part that surprised me, because cheap kits usually skim on it.

Most of my use is what I would call medium duty. Fire roads at 25 to 35 mph, desert washes after a day ride, and two three-night camp trips where the quad hauled gear in and out after dark. The kind of use that finds every weak spot in a mount and every gap in a gasket. The lights have been rained on, dusted hard, hit by branches on a tight trail, and pushed through a couple of water crossings that came up to the front rack. They have not missed a beat.

I ran them about an hour a night on the camp trips, less on the shorter rides. Call it fifty to sixty hours total, which is nothing for an LED, but the conditions matter more than the hours. High desert dust gets into everything. It is the thing that kills most of my accessories, and it is the reason I keep a close eye on these pods.

Mounting and the First Install

The install took me about an hour and a half, and forty minutes of that was deciding where to put the switch. The harness runs from the battery to a relay, then to the pods. Nilight includes the relay and a blade fuse, which most kits at this price skip. The connectors are weather-sealed plugs, not bare spade terminals, and that tells you they thought about where these lights live.

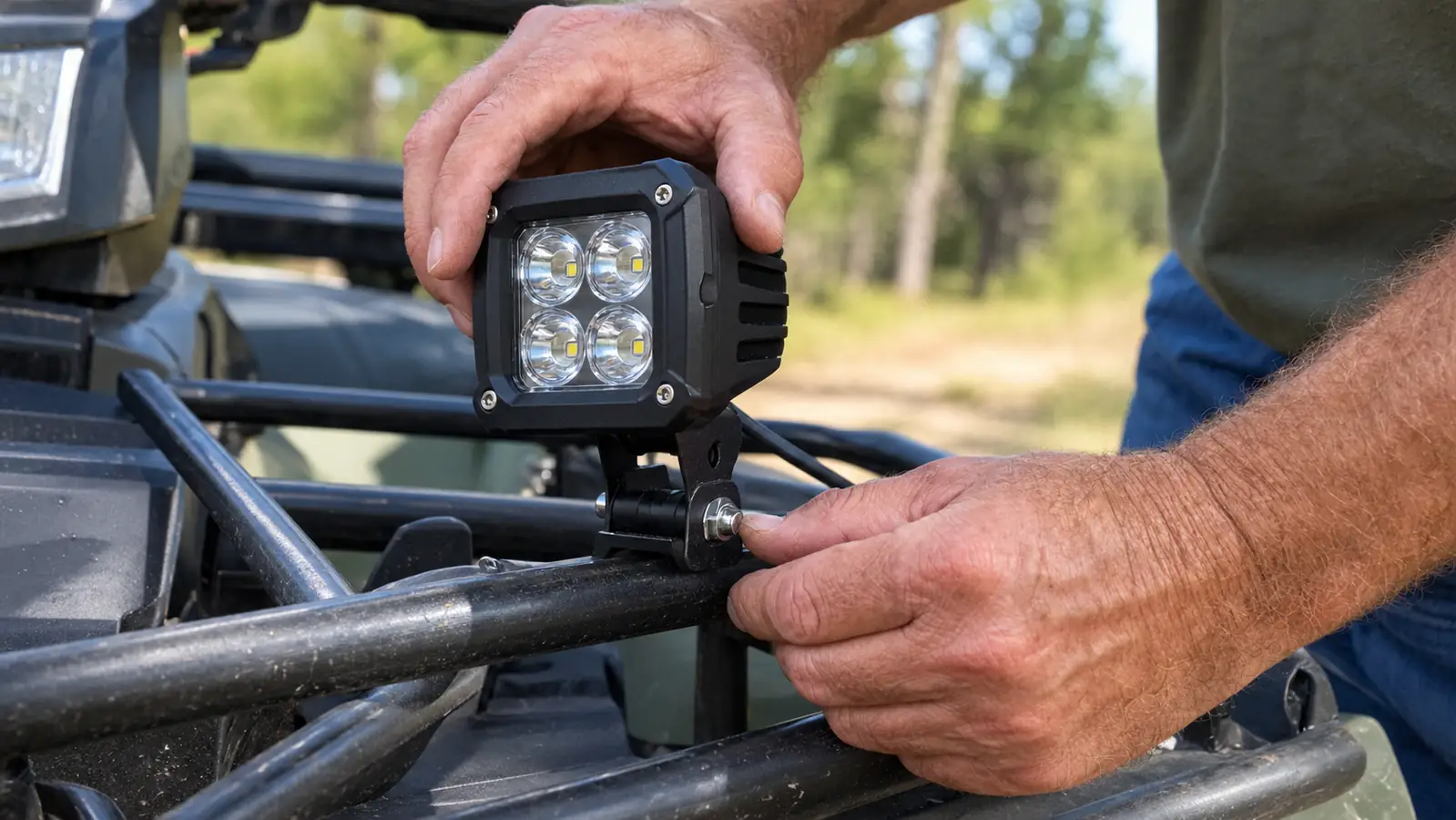

I mounted the pods on a flat aluminum bracket across the front rack. The kit has a universal mounting tab that rotates, so you can aim them up or down. I set mine to throw slightly wide and low, because on a wash crossing the light that helps is the light on the ground, not the light on the treeline. It took two rides to dial the aim in. The lock washers that came with the kit have held through everything so far, which is more than I can say for the brackets on a bar I ran years ago.

One honest note: the included bolts are fine, but I replaced them with stainless after the first month because I saw surface rust starting on the heads. Cheap steel bolts on a desert machine will do that. It is not a knock on the lights themselves, just the hardware that comes in the box. If you have a bench and a vise like I do, you will probably swap them too.

Light Output: What You Actually See

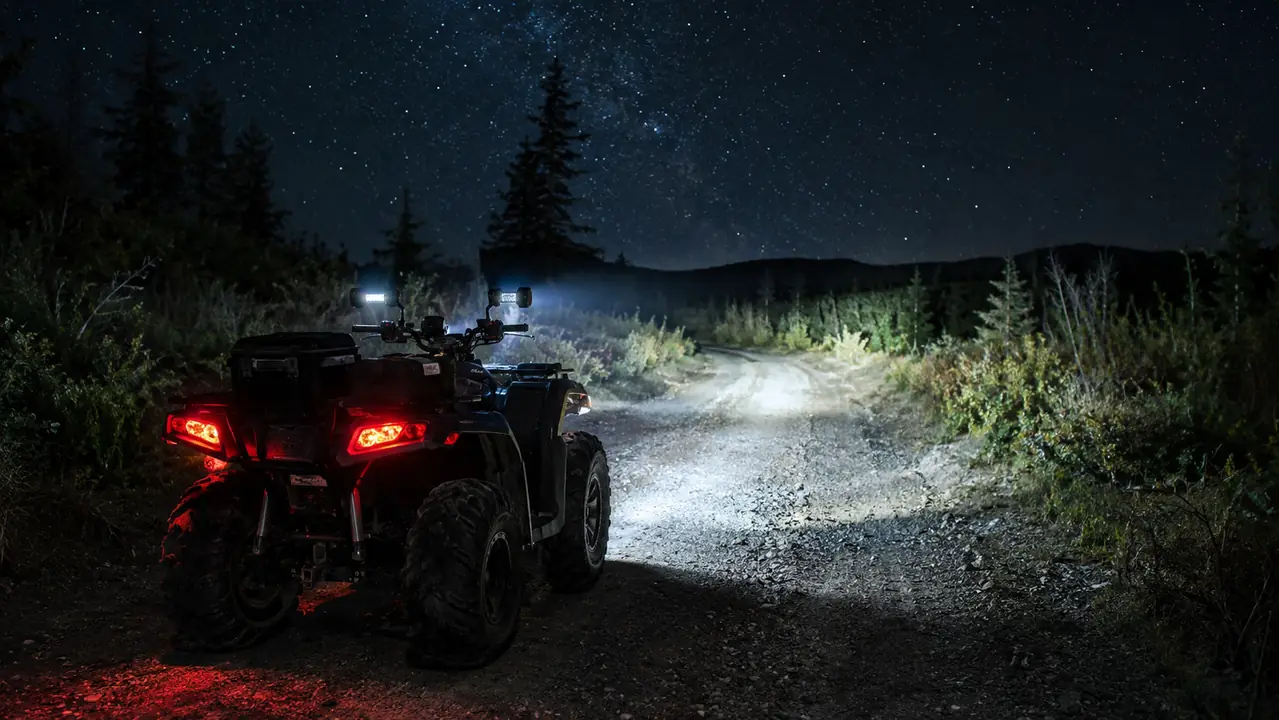

Each pod is 60W combined, but the real story is the combo pattern. The outer ring is flood, the center is spot. That means you get a wide pool of light close in and a focused pencil beam that reaches down the road. On the fire roads I ride, it is the right mix. The stock headlights do the first thirty feet, the pods take over from there, and together they light a working area maybe sixty yards ahead. On a straight graded section it feels like more, because the spot center carries.

I am not going to quote a lumen number, because the number on the box and the number in the real world are never the same and I did not set up a light meter. What I can tell you: at 30 mph on a graded road, I can see the edges clearly and pick out a wash crossing in time to scrub speed. That is the test that matters. It is the difference between riding by feel and riding by sight.

The beam has a clean cutoff, not the messy scatter you get from cheap chips. No glare bouncing back off the dust in your face, which was my biggest fear going in. On a dusty night the light stays where you point it. That is a design detail most riders do not think about until they ride behind someone with a bad bar and it feels like driving into a fog. I have ridden behind cheaper bars that light the whole tree line and leave the road dark. These are the opposite.

Durability Over Six Months

Six months of desert use is a real test. The housings are aluminum, and they run warm but never hot. The lens is polycarbonate and it has taken branch hits without a scratch you can feel. The gaskets have kept dust out of the internals, and I checked that specifically because dust is what kills everything I own. I pulled one pod off at month four to inspect the seal. Clean inside, no condensation, no corrosion on the board. That is the result I want from any accessory that lives on the front of a quad.

The harness has held up better than I expected. It is routed along the frame with the factory loom, and the weather-sealed connectors have been through two water crossings and a season of dust. No flicker, no blown fuse, no relay chatter. The switch on the handlebar has a positive click and it has not softened in six months of use.

One thing I will say plainly: these are not a replacement for a proper long bar if you are trying to light a whole field or a camp. They are aimed at what most riders actually need, which is seeing the road in front of you after dark. That is the honest tradeoff. They do one job, and they do it without drama.

The Wiring, In Detail

Since I am a fabricator, I paid attention to the wiring kit more than most riders would. The 12-foot harness is thick enough to handle the draw without getting warm, which is the first thing I check on any cheap light. The relay is a standard automotive style, and Nilight puts the blade fuse in a holder that actually fits. The switch is a rocker with a small LED indicator. All of it is above the level you expect at this price.

I routed the harness along the frame with the factory loom, using zip ties where the kit had them and a couple of my own. The weather-sealed plugs click together with a positive lock, and there is no way to plug them in backwards, which is more than I can say for some kits I have seen. If you are even a little handy, the whole thing is straightforward. If you are not, the instructions are decent and the connectors make it hard to get wrong.

One small gripe: the switch is meant for a handlebar, and on my Grizzly the bar was already crowded with the winch control and a phone mount. I ended up mounting the switch on the front rack instead, which works fine but means I reach forward to turn the lights on. If your bars are empty, mount it where they intend and it is a five minute job. Not a dealbreaker, just something to know before you commit to a spot.

What I'd Change Next Time

Not much, honestly. The bolts, which I already swapped. The aim, which took two rides to dial in because there is no marking on the bracket to tell you where level is. And I would have liked a slightly longer pigtail on each pod so I did not have to extend one of them to reach the harness. The pigtail thing is my own doing, I could have routed it differently. All three are small, and none of them would stop me from buying these again.

If I were buying for a second machine, and I am not, I would buy the same pair. That is the highest praise I can give an accessory after six months: it is still on the machine, still doing the job, and I have not thought about replacing it once.

The test that matters is at 30 mph on a graded road after dark: can you see the edges and pick out a wash crossing in time. These pods do.

Who This Is For

If you ride a quad or ATV after dark on roads, washes, farm tracks, or fire roads, and your stock lights wash out the minute you leave pavement, this is the set. If you want flood and spot without wiring a separate bar and a set of driving lamps, the matched pair covers both. If you are tired of cheap kits with skimpy harnesses and bare terminals, the included relay and weather-sealed plugs are a real upgrade. And if you are the guy who likes to aim a light and forget it, these reward that.

They also suit riders who want light without a big bar hanging off the front. The pods sit low and close to the rack. They do not add much wind load, and they do not look like a rolling light show. For a weekend rider who keeps one machine running himself, these are the kind of add-on that just works.

Who Should Skip It

If you need to light a wide area, a field, a camp, a work site, these pods will frustrate you. That is what a full-size bar or a set of wide-pattern floods is for. If you ride at speed on open desert and want to see a quarter mile, you want a longer bar or a spot with more reach. These are for the road in front of you, not the horizon.

Also skip them if you expect a zero-effort install with no thought about aim or routing. You will spend an hour and a half, and you will probably swap the bolts like I did. That is not a knock, it is just the truth about any light you bolt to a quad. If you want something that takes five minutes, this is not it.
